Evaporators

An evaporator is an essential component of cooling systems. Typically designed as a serpentine coil, it enables the refrigerant to evaporate and absorb heat from the surrounding environment. During this process, heat is transferred from the surroundings, thereby lowering the ambient temperature and achieving the desired cooling effect.

Product Catalog (PDF)

Evaporators

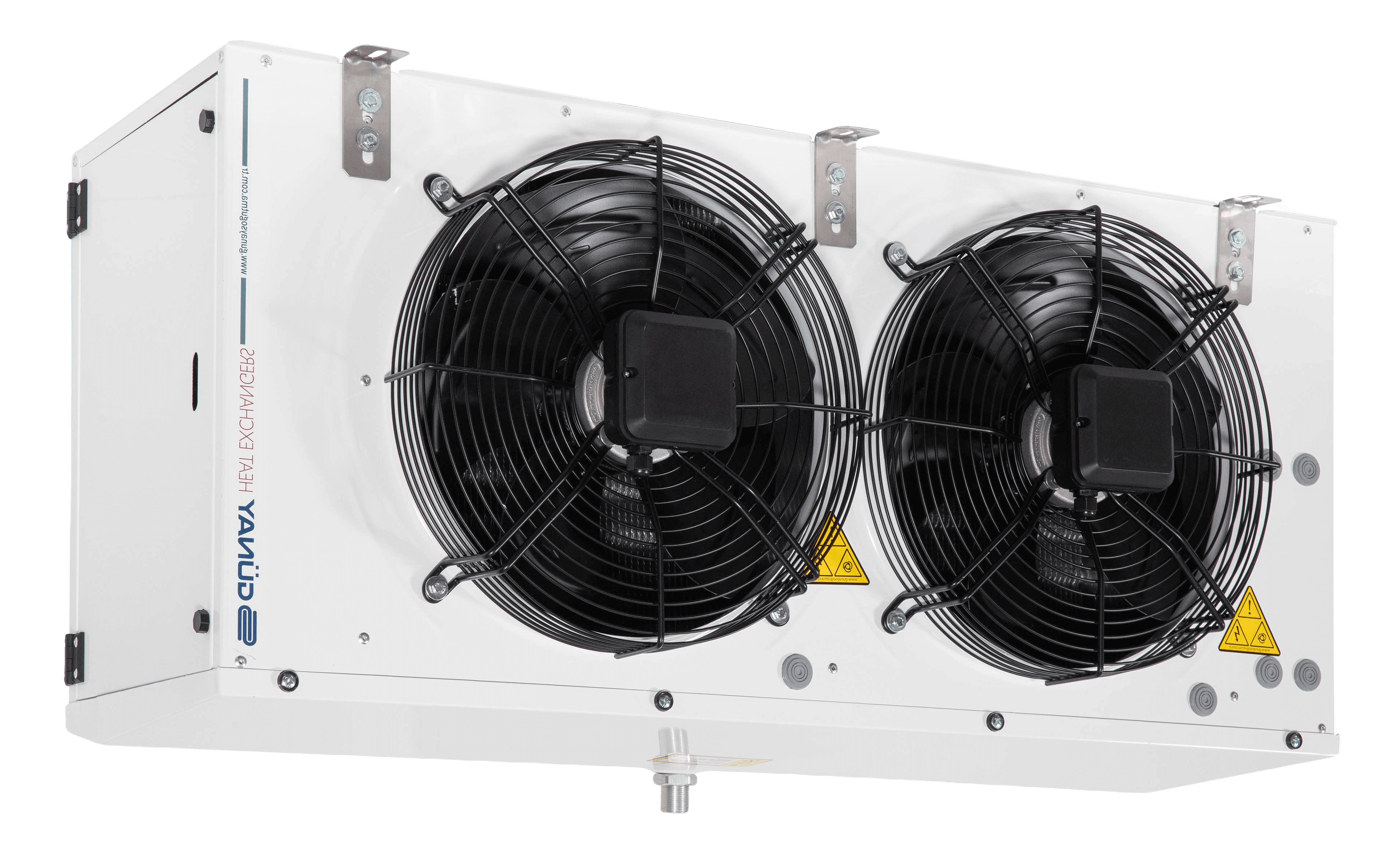

Commercial Type Evaporator

Commercial Type Evaporators are designed for small and medium scale cooling needs. Offers high performance and energy efficiency in commercial and industrial areas.

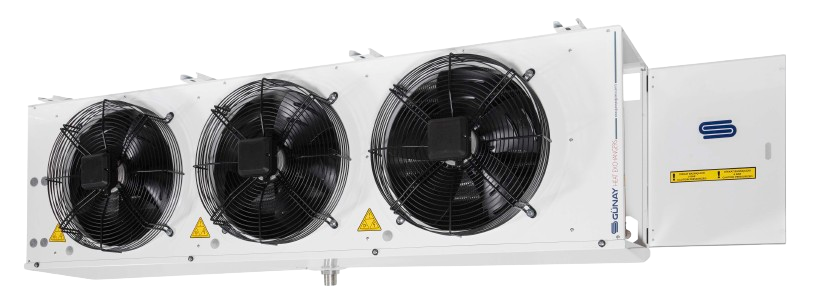

Commercial Type Evaporator

GND

Coils

Manufactured in pipe diameter of 1/2" with wall thickness of 0,35 mm in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing of 8 mm, and the mold geometry is designed as 40x35mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Cabinet

GND Series Commercial Type Air Cooler cabinets are manufactured from galvanized steel, painted with RAL 9016 electrostatic powder paint, which is resistant to different weather conditions.

Fan

GND Serisies Commercial Type Air Coolers use fans with diameters of Ø250, Ø300, Ø350, Ø400, Ø450, Ø500 mm.

Defrost

Optional E1 or E2 electric defrost applications are available.

Capacity

Capacities are calculated according to EN328 Standards for R404A gas based on European fans.

Test

GND Series Commercial Type Air Coolers are tested at 40 bar and shipped with 6 bar nitrogen.

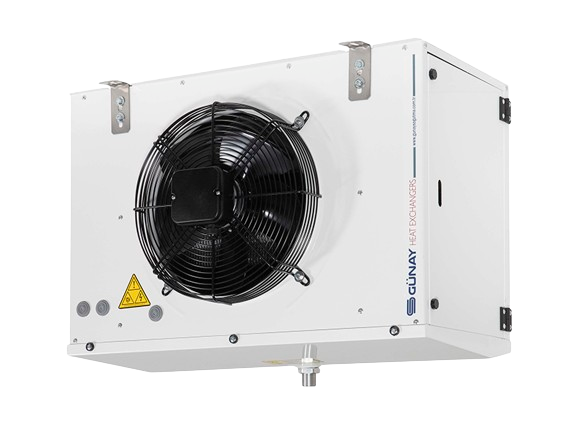

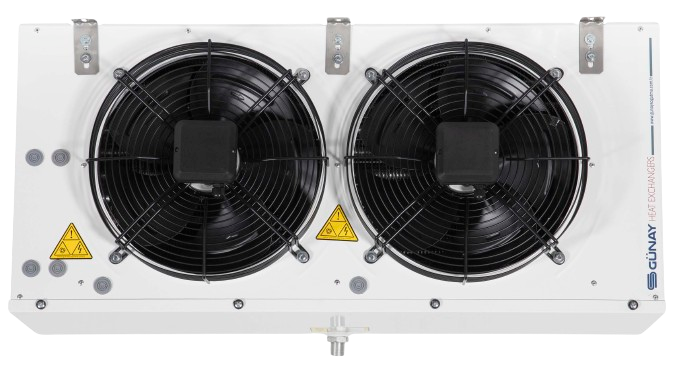

Commercial Type Evaporator

GNA

Coils

Manufactured in pipe diameter of 1/2" with wall thickness of 0,35 mm, in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing of 6 mm, and the mold geometry is designed as 40x35 mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Cabinet

GNA Series Commercial Type Air Coolers cabinets are manufactured from galvanized steel, painted with RAL 9016 electrostatic powder paint, which is resistant to different weather conditions.

Fan

GNA Series Commercial Type Air Coolers use fans with diameters of Ø250, Ø300, Ø350, Ø400, Ø450, Ø500 mm.

Defrost

Optional E1 or E2 electric defrost applications are available.

Capacity

Capacities are calculated according to EN 328 Standards for R404A gas based on European fans.

Test

GNA Series Commercial Type Air Coolers are tested at 40 bar and shipped with 6 bar nitrogen.

Evaporators

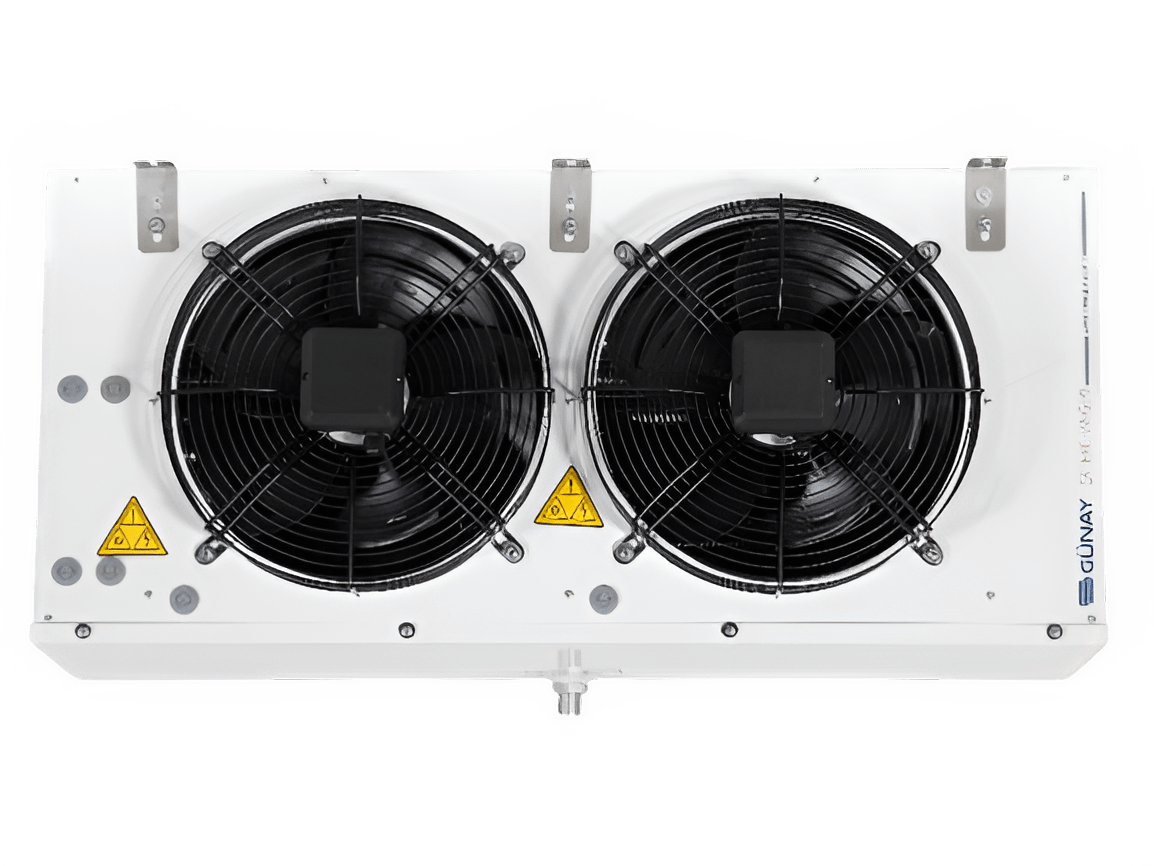

Standard Type Evaporator

Standard Type Evaporators are developed for higher performance and efficiency based on the features of commercial type models. Offers superior performance and energy efficiency in commercial and industrial areas.

Standard Type Evaporator

GNE

Coils

Manufactured in pipe diameters of 1/2" and 5/8" with wall thicknesses of 0,35 mm and 0,40 mm, in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing of 10 mm, and the mold geometry is designed as 56x48 mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Cabinet

GNE Series Standard Type Air Coolers cabinets are manufactured from galvanized steel, painted with RAL 9016 electrostatic powder paint, which is resistant to different weather conditions.

Fan

GNE Serises Standard Type Air Coolers use fans with diameters of Ø250, Ø300, Ø350, Ø400, Ø450, Ø500 mm.

Defrost

Optional electric defrost applications of type E1 or E2 are available.

Capacity

Capacities are calculated according to EN 328 standards for R404A gas based on European fans.

Test

GNE Series Standard Type Air Coolers are tested at 40 bar and delivered with nitrogen at 6 bar.

Evaporators

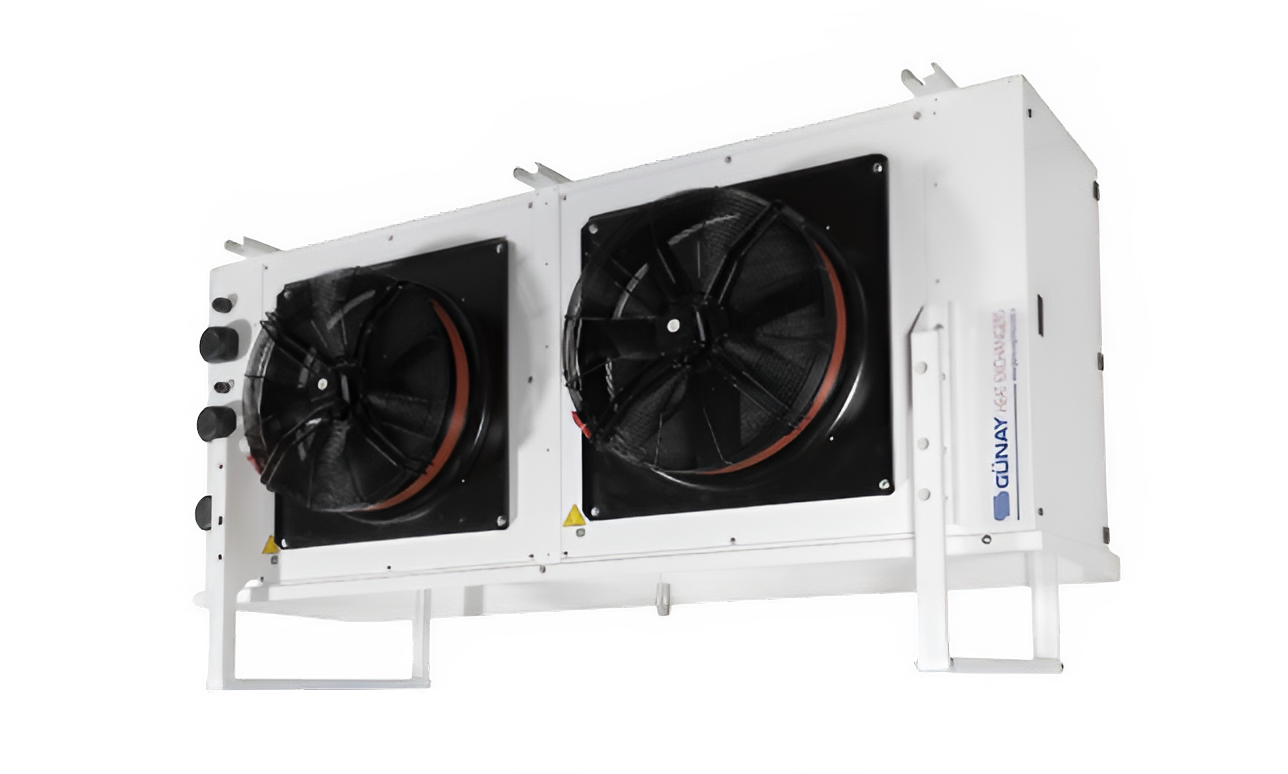

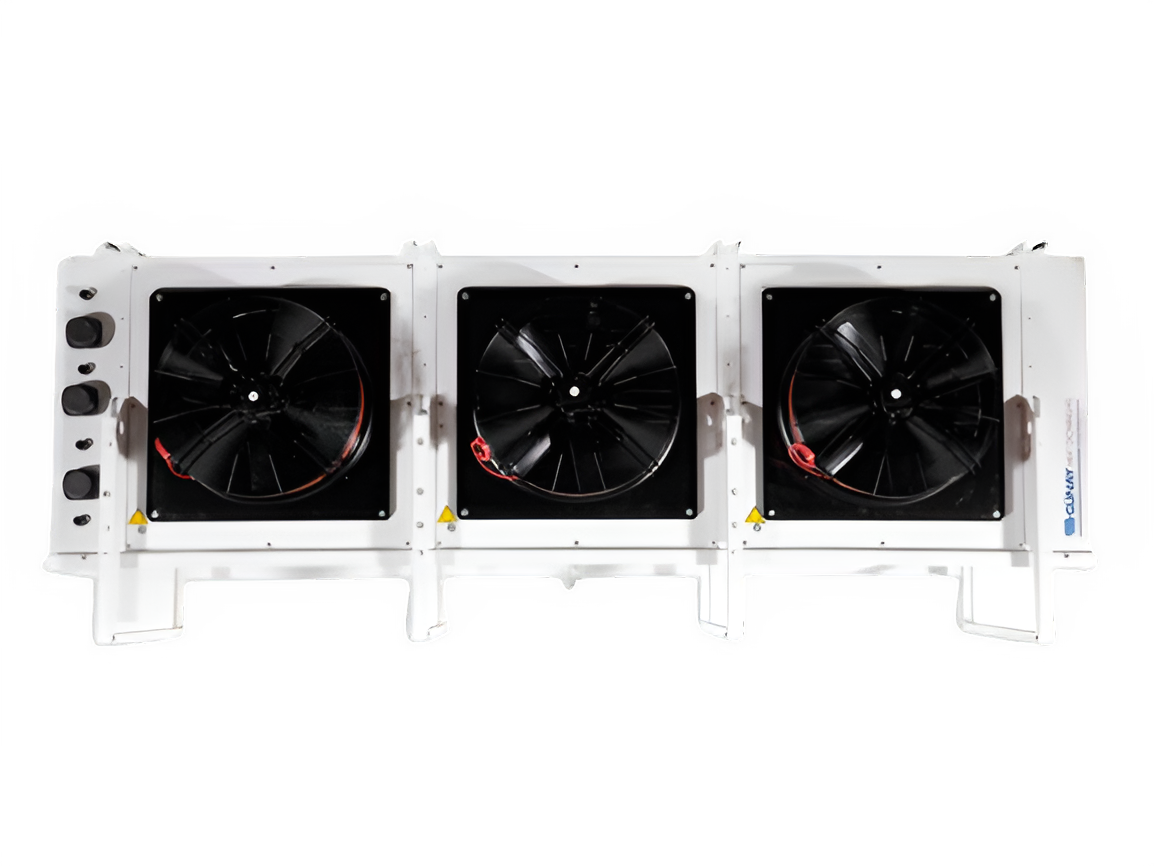

Blast Freezer Evaporators

Blast Freezer Evaporators have been developed to freeze products very quickly, keeping them fresher and longer. Offers superior performance and efficiency in industrial areas.

Blast Freezer Evaporators

GNS

Coils

Manufactured in pipe diameters of 1/2" and 5/8" with wall thicknesses of 0,35 mm and 0,40 mm, in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing of 10 mm, and the mold geometry is designed as 56x48 mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Cabinet

GNS Series Blast Freezer Evaporators cabinets are manufactured from galvanized steel, painted with RAL 9016 electrostatic powder paint, which is resistant to different weather conditions.

Fan

GNS Series Blast Freezer Evaporator use fan with diameter of Ø630 mm.

Defrost

Optional electric defrost applications of type E3 are available.

Capacity

Capacities are calculated according to EN 328 standards for R404A gas based on European fans.

Test

GNS Series Blast Freezer Evaporators are tested at 40 bar and delivered with nitrogen at 6 bar.

Evaporators

Ceiling Type Evaporator

Ceiling Type Evaporators are used in areas where cold air is not desired to come directly to the products. Cooling is performed single or double-sided from the ceiling to the floor. Offers high performance and energy efficiency.

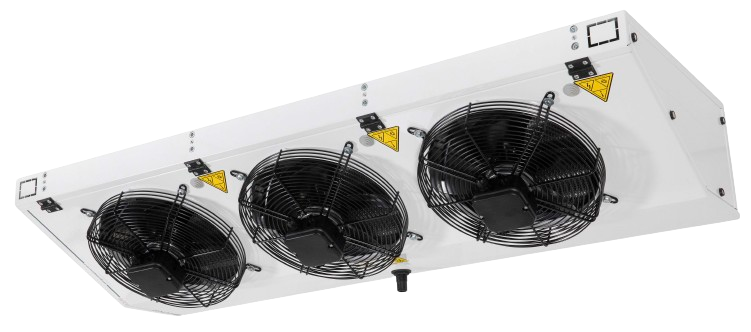

Ceiling Type Evaporator

GYE

Coils

Manufactured in pipe diameter of 1/2" with wall thickness of 0,35 mm in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing of 6 mm and 8mm, the mold geometry is designed as 40x35 mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Cabin

GYE Series Ceiling Type Evaporators cabinets are manufactured from galvanized steel, painted with RAL 9016 electrostatic powder paint, which is resistant to different weather conditions.

Fan

GYE Series Ceiling Type Evaporators use fans with diameters of Ø300 and Ø350 mm.

Defrost

Optional E1 or E2 electric defrost applications are available.

Capacity

The capacities are calculated according to EN 328 Standards for R404A gas compared to European fans.

Test

GYE Series Ceiling Type Evaporators are tested at 40 bar and shipped with 6 bar of nitrogen.

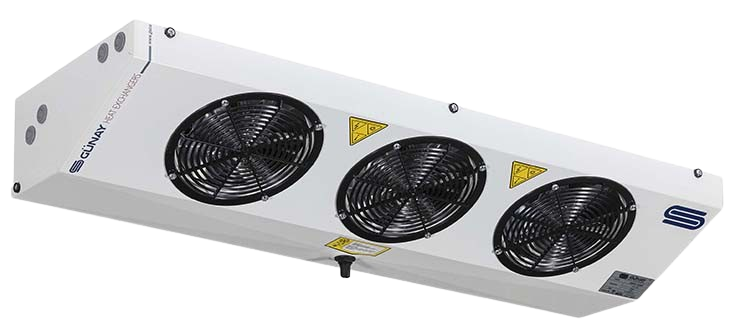

Ceiling Type Evaporator

GKE

Coils

Manufactured in pipe diameter of 3/8" with wall thickness of 0,35 mm in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing of 3,5 mm, and the mold geometry is designed as 25x22 mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Cabinet

GKE Series Ceiling Type Evaporators cabinets are manufactured from galvanized steel, painted with RAL 9016 electrostatic powder paint, which is resistant to different weather conditions.

Fan

GKE Series Ceiling Type Evaporators use fans with diameters of Ø200 and Ø250 mm.

Defrost

Optional E1 or E2 electric defrost applications are available.

Capacity

Capacities are calculated according to EN 328 Standards for R404A gas with European fans.

Test

The GKE Series Ceiling Type Evaporators are tested at 40 bar and delivered with 6 bar nitrogen.

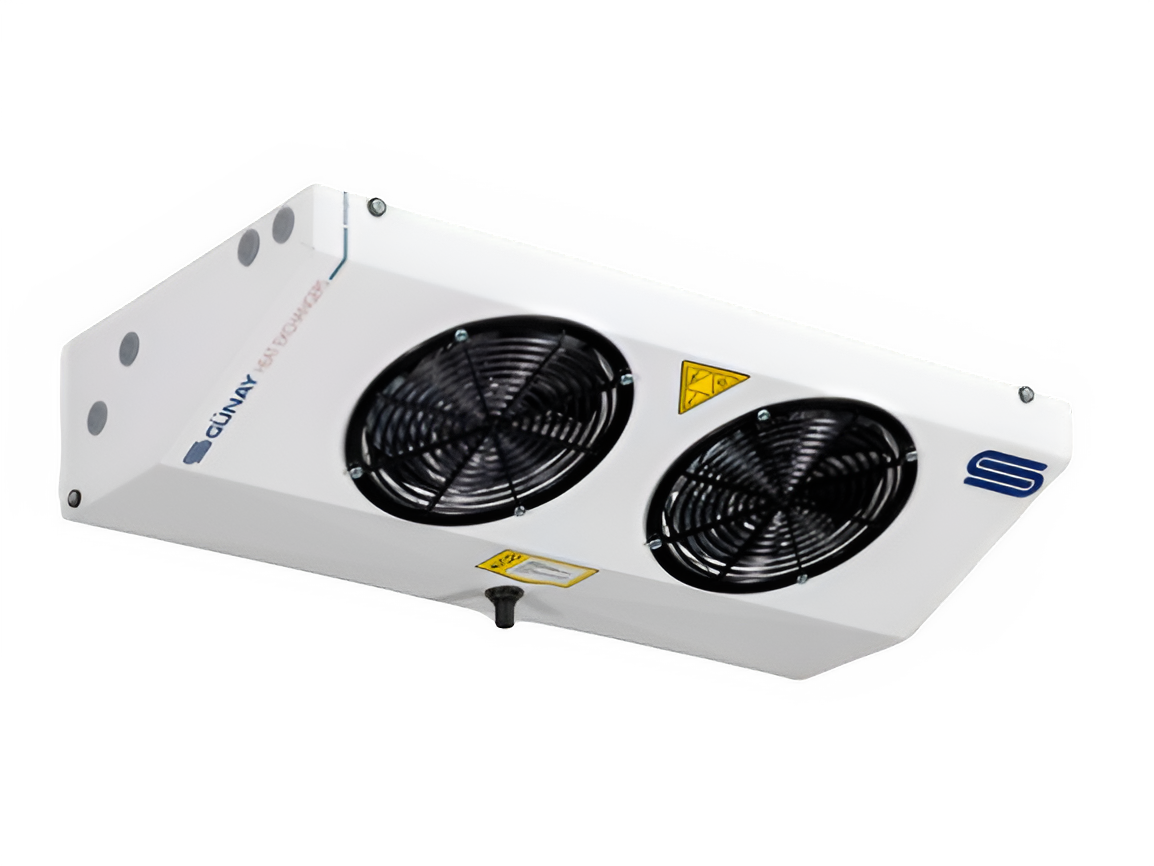

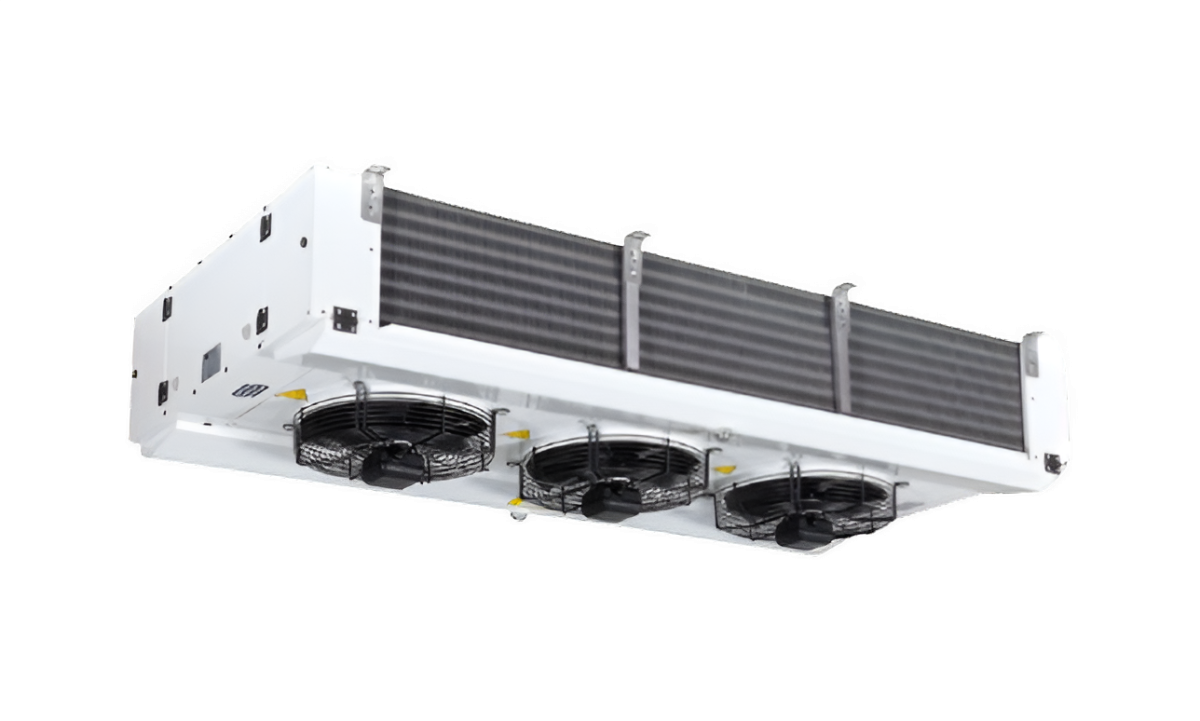

Ceiling Type Evaporator

GEO

Coils

Manufactured in pipe diameter of 3/8" with wall thicknesses of 0,35 mm in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing of 5 mm, and the mold geometry is designed as 32x28 mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Cabinet

GEO Series Ceiling Type Evaporators cabinets are manufactured from galvanized steel, painted with RAL 9016 electrostatic powder paint, which is resistant to different weather conditions.

Fan

GEO Series Ceiling Type Evaporators use fans with diameters of Ø250, Ø300, Ø350, Ø400 mm.

Defrost

Optional E1 or E2 electric defrost applications are available.

Capacity

Capacities are calculated according to EN 328 Standards for R404A gas with European fans.

Test

GEO Series Ceiling Type Evaporators are tested at 40 bar and shipped with 6 bar nitrogen.

Evaporators

Plastic Cabinet Ceiling Type Evaporators

Designed for areas where cold air is not desired to come directly to the products. Ideal for commercial applications and small volumes. Cooling is done single or double-sided from ceiling to floor. Offers high performance and energy efficiency.

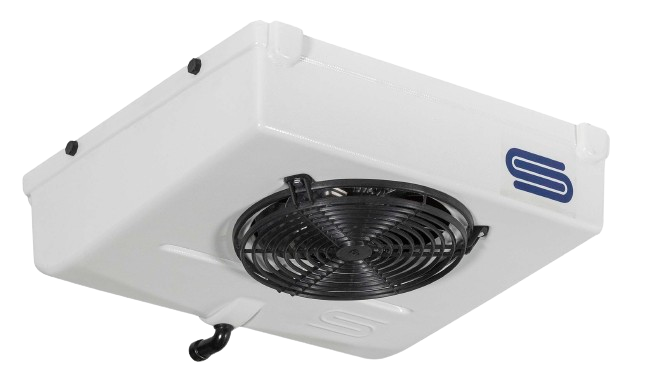

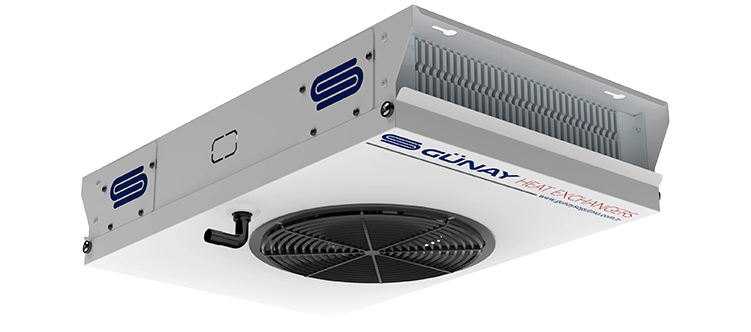

Plastic Cabinet Ceiling Type Evaporators

GNKY

Coils

Manufactured in pipe diameter of 3/8" with wall thickness of 0.35 mm, in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing of 4 mm, and the mold geometry is designed as 25x22 mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Cabinet

GNKY Series Plastic Ceiling Type Evaporators cabinets are manufactured from galvanized steel, painted with RAL 9016 electrostatic powder paint, which is resistant to different weather conditions.

Fan

GNKY Series Plastic Ceiling Type Evaporators use fans with diameters of Ø200 mm.

Capacity

Capacities are calculated according to European fans and for R404A gas according to EN 328 Standards.

Test

GNKY Series Plastic Ceiling Type Evaporators are tested at a pressure of 40 bar and delivered with 6 bar nitrogen.

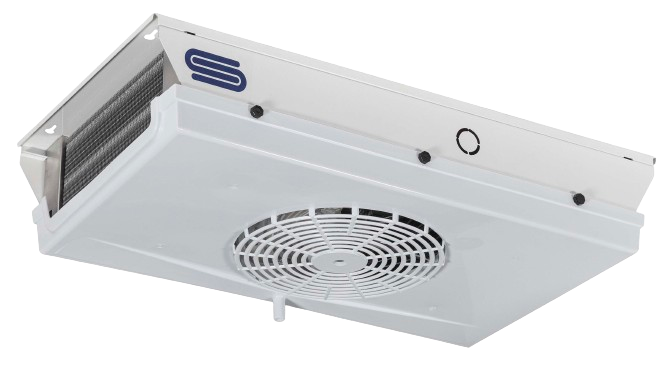

Plastic Cabinet Ceiling Type Evaporators

GNK

Coils

Manufactured in pipe diameter of 3/8" with wall thickness of 0,35 mm in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing of 4,5 mm, and the mold geometry is designed as 32x28 mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Cabinet

GNK Series Plastic Ceiling Type Evaporators' cabinets are manufactured from galvanized steel, painted with RAL 9016 electrostatic powder paint, which is resistant to different weather conditions.

Fan

GNK Series Plastic Ceiling Type Evaporators use fans with diameters of Ø250, Ø300 mm.

Defrost

Optional E1 or E2 electric defrost application can be provided upon request.

Capacity

Capacities are calculated according to EN 328 Standards for R404A refrigerant gas based on European fans.

Testing

The GNK Series Plastic Ceiling Type Evaporators are tested at 40 bar and shipped with 6 bar nitrogen.

Evaporators

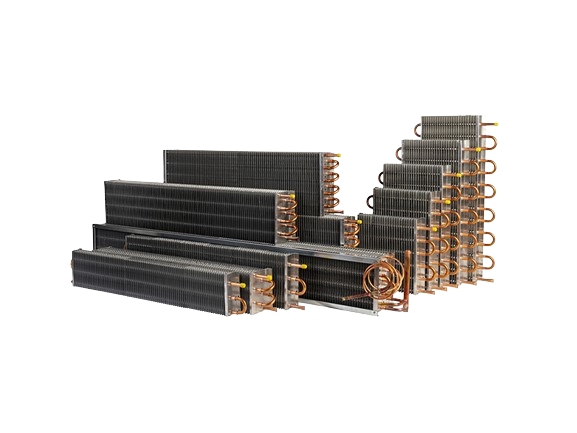

Gravity Coolers

Designed for use in cabinets and display cases. It optimizes cold air circulation and provides an aesthetic look while preserving product freshness. Ideal solution for various commercial applications with high performance and energy efficiency.

Gravity Coolers

GS

Coils

Manufactured in pipe diameters of 1/2" and 5/8" with wall thickness of 0,35 mm in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing ranging from 8-10 mm, and the mold geometry is designed as 56x48 and 35x35mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Defrost

Optional E1 or E2 electric defrost applications are available.

Capacity

The capacities are calculated according to EN 328 Standards for R404A gas based on European fans.

Test

GS Series Gravity Coolers are tested with 40 bar and shipped with 6 bar of nitrogen.

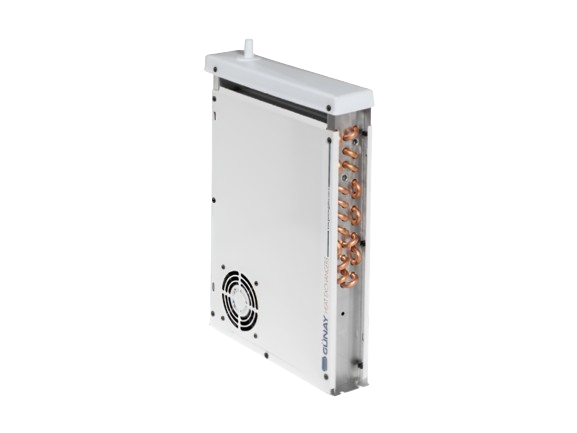

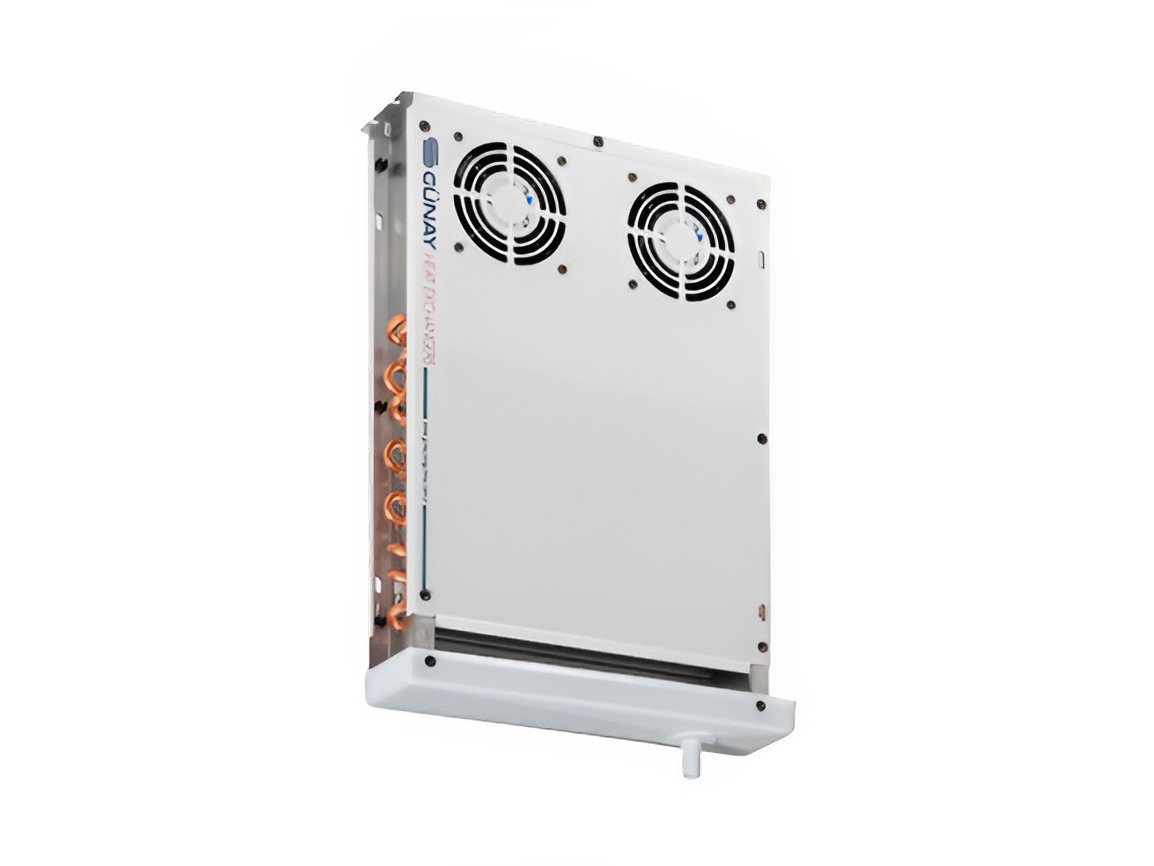

Gravity Coolers

GNKF

Coils

Manufactured in pipe diameter of 3/8" with wall thickness of 0,35 mm, in a staggered arrangement.

Aluminum fins with a corrugated surface are used, with a fin spacing of 3 mm, and the mold geometry is designed as 25x22 mm.

To protect the copper pipes used in the batteries, mirror sheets are made of aluminum. A Refrigerant Distributor and Copper Collector are used.

Cabinet

GNKF Series Gravity Coolers cabinets are manufactured from galvanized steel, painted with RAL 9016 electrostatic powder paint, which is resistant to different weather conditions.

Fan

GNKF Series Gravity Coolers use fans with diameters of Ø120 mm.

Defrost

Optional E1 or E2 electric defrost application is available.

Capacity

Capacities are calculated according to EN 328 Standards for R404A gas based on European fans.

Test

The GNKF Series Gravity Coolers are tested with 40 bar and shipped with 6 bar of nitrogen.
