Condensers

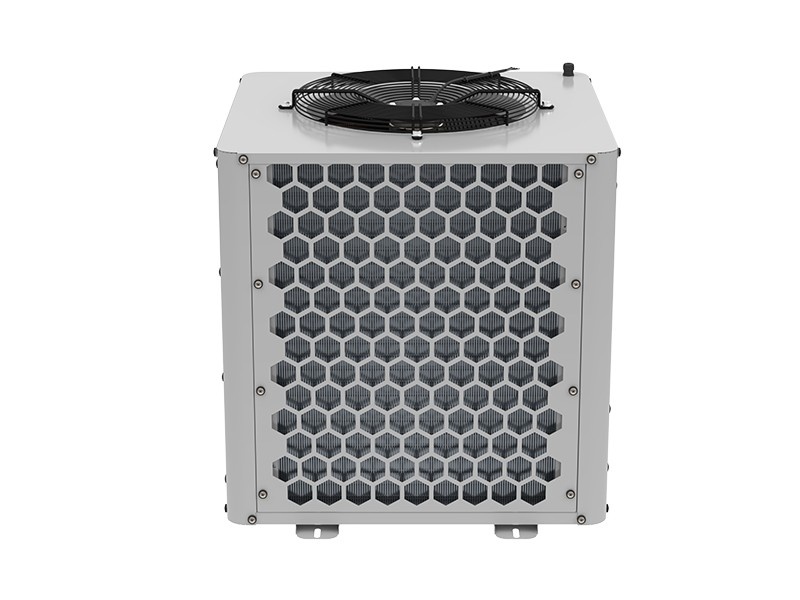

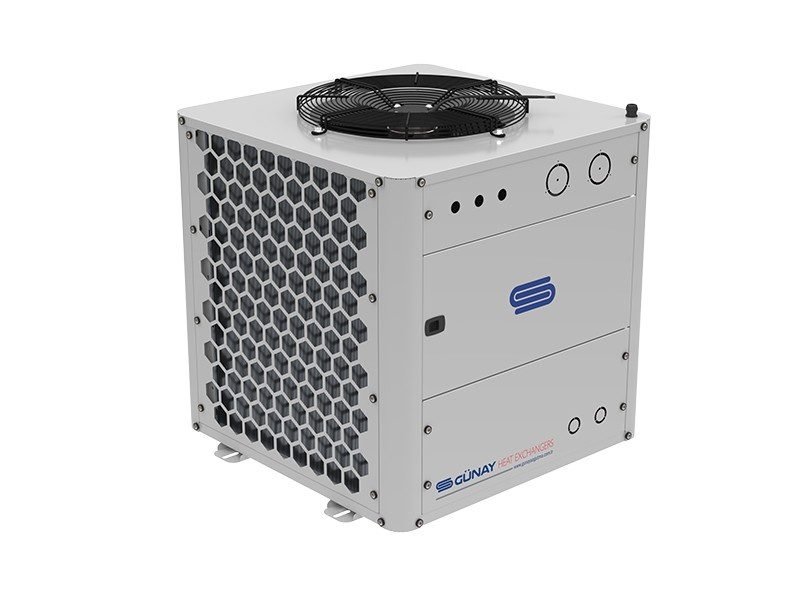

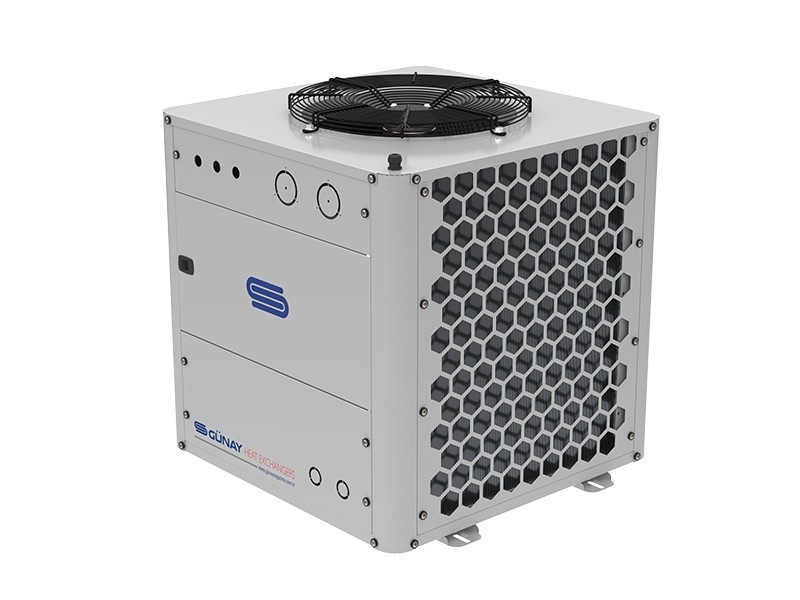

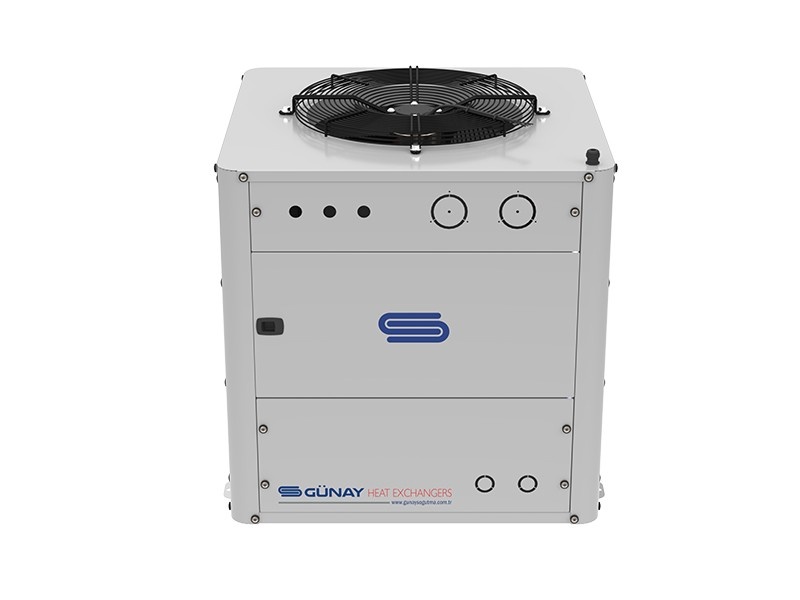

Cabinet Condensers - GZBOX

GZBOX
Request Offer Find Product Price List (PDF) Detailed Product Selection
Request Offer Find Product Price List (PDF) Detailed Product Selection
Description

Battery

The battery is manufactured with 3/8" pipe diameter and 0.35 mm wall thickness, in a staggered arrangement with a copper collector.

Special high-efficiency aluminum fins with an expanded surface are used. The fin spacing is 2.1 mm, and the mold geometry is designed as 25x22 mm.

Cabinet

GZBOX Series Cabinet Condensers’ enclosures are made of galvanized steel and painted with RAL 9016 electrostatic powder coating, offering resistance to various weather conditions.

Fan

GZBOX Series Cabinet Condensers use Ø300, Ø350, Ø400, Ø450, and Ø500 mm fans operating at 1400 rpm.

Optional fan model variations are available upon request.

Operating temperature range is -40/+50 °C.

Capacity

Capacities are calculated according to EN 328 Standards for R404A refrigerant, under dT=15K condition, based on European fans.

Test

GZBOX Series Cabinet Condensers are tested at 40 bar and shipped with 6 bar nitrogen.

GZBOX GZBOX GZBOX GZBOX GZBOX

Other Products

Cabinet Condensers
GBOX
GBOX

Coils

Manufactured in pipe diameter of 3/8" with wall thickness of 0.35 mm, in a staggered arrangement and with Copper Collector

Aluminum fins with a corrugated surface are used, featuring a fin spacing ranging from 1.8-2,7 mm, and the mold geometry is designed as 30x26 mm or 32x28mm

Cabinet

GBOX Series Split Type Cabinet Condenser cabinets are resistant to different weather conditions and are produced from galvanized steel, painted with RAL 9016 electrostatic powder paint.

Fan

GBOX Series Split Type Cabinet Condensers use Ø350, Ø400, Ø450, Ø500 mm fans with 1400 rpm or 900 rpm.

Optional fan model changes are applied.

The operating temperature range is -40/+50 °C.

Capacity

Capacities are calculated according to EN 328 Standards for R404A gas at dT=15K conditions compared to European fans.

Test

GBOX Series Split Type Cabinet Condensers are tested at 40 bar and shipped with 6 bar of nitrogen.
Industrial Condenser Units
GMBOX
GMBOX

Coils

Manufactured in pipe diameter of 3/8" with wall thickness of 0.35 mm, in a staggered arrangement and with Copper Collector

Aluminum fin with special high efficiency blasted surface is used. Fin spacing is 2.1 mm and mold geometry is designed as 25x22 mm.

Cabinet

Industrial Type GMBOX Cabin Condenser cabinets are resistant to different weather conditions and are produced from galvanized steel, painted with RAL 9016 electrostatic powder paint.

Fan

Industrial Type GMBOX Cabin Condensers use Ø500 mm fans with 1400 or 900 rpm.

Optional fan model can be applied.

The operating temperature range is -40/+50 °C.

Capacity

Capacities are calculated according to EN 328 Standards for R404A gas under dT=15K conditions compared to European fans.

Test

Industrial Type GMBOX Cabin Condensers are tested at 40 bar pressure and shipped with 6 bar nitrogen.
Industrial Condenser Units
GDBOX
GDBOX

Coils

Manufactured in pipe diameter of 3/8" with wall thicknesses of 0.35 mm, in a staggered arrangement and with Copper Collector

Aluminum fin with special high efficiency blasted surface is used. Fin spacing is 2.1 mm and mold geometry is designed as 25x22 mm.

Cabinet

Industrial Type GDBOX Cabinet Condenser cabinets are resistant to different weather conditions and are produced from galvanized steel, painted with RAL 9016 electrostatic powder paint.

Fan

Industrial Type GDBOX Cabinet Condensers utilize fans with diameters of Ø500 mm, rotating at 1400 rpm or 900 rpm.

Optional fan model can be applied.

The operating temperature range is -40/+50 °C.

Capacity

The capacities are calculated according to EN 328 Standards for R404A gas at dT=15K condition, based on European fans.

Test

Industrial Type GDBOX Cabinet Condensers are tested at 40 bar and shipped with 6 bar of nitrogen.
